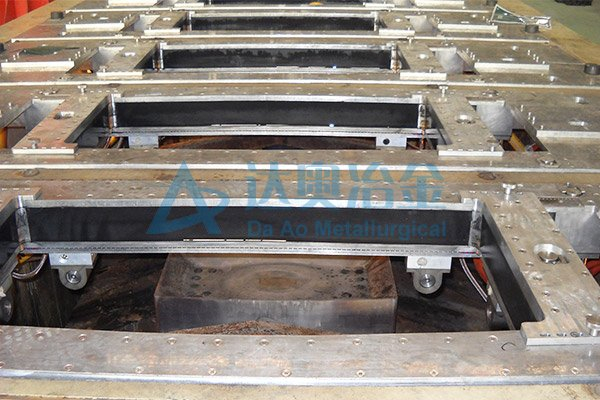

Graphite Ring Ingot Casting with Two Lines of Water-holes

graphite Ring Ingot casting with two lines of water-holes

The advantage of graphite ring ingot casting are smooth of casting surface  /  shallow of the segregation layer / decreases quality of the milling surface .Our company compare with the Wagstaff’s casting technology , we designed and improved these ingot casting .After improve the effect of the ingot casting can reach the Wagstaff’s .

The characters of products design

A double lines of cooling style

B Integral Water cavity type; surface of the mould designed of Staging transition to make sure ingot casting surface uniform contraction

C Using the center of the CNC Machining to processing ;the precision of the type cavity and smooth of the surface is more higher , more better of the consistency of the Water Spray angle; ingot casting tie with the size of the bottom can completely meet with the automatic casting control system (laser control or sensor control)

D the surface of the ingot casting use the special graphite Ring ,and lower position of liquid casting ,improve Coarse grain layer on the surface of ingot

F Special designed of curve , improve the defect of “expansion  of  the  end of casting ”of the WAGSTAFF’s  ingot casting

Typical cases

Inner Mongolia Huomei Hongjun aluminum Flat Ingot Co., Ltd , according with the market needs ,cooperation with our company together develop a set of size : 480x1100~1400 adjustable  graphite Ring Ingot casting with two lines of water-holes.We use about 1 year from research ,design and make out and put in production ; At last tie to his Wagstaff casting machine ,reach to the perfectly effect.
